Showing 1–16 of 73 results

  • three way screw expanderthree-way-screw-front

    3-Way Appliance

     The 3-way screw is used to widen and well and lengthen the arch. The anterior section

    will drive forces forward using on the incisors. Alternatively, we can incorporate three

    individual screws, one to widen and two following the sagittal plane to distalize the

    posterior section. As with any expansion appliance, we recommend maximum retention

    with Adams clasps on the 6’s (if erupted) and ball clasps between the pre-molars. You

    can also incorporate a labial bow to control the anterior incisors and a posterior bite plate

    to disarticulate the arches providing additional anchorage for the upper appliance.

    The 3-way screw is used to widen and well and lengthen the arch. The anterior section will drive forces forward using on the incisors. Alternatively, we can incorporate three individual screws, one to widen and two following the sagittal plane to distalize the posterior section. As with any expansion appliance, we recommend maximum retention with Adams clasps on the 6’s (if erupted) and ball clasps between the pre-molars. You can also incorporate a labial bow to control the anterior incisors and a posterior bite plate to disarticulate the arches providing additional anchorage for the upper appliance.

    Contact Us
    Contact Us
  • Anterior deprogrammerAnterior deprogrammer splint

    Anterior Deprogrammer Splint

    The anterior deprogrammer is a flat plane occlusal splint with an anterior acrylic block designed to disclude the posterior teeth. Since the body has a protective reflex to prevent added pressure to the anterior teeth when this splint is worn less pressure is exerted.  This appliance is recommended from patients with heavy bruxism and TMJ pain.

    Contact Us
    Contact Us
  • Repositioning SplintRepositioning Splint

    Anterior Repositioning Splint

    The anterior repositioning splint (also referred to as the anti-retrusion, pull forward, or Farrar splint) is used to recapture an anteriorly displaced disc. A definite click in the joint is present. This is a full-coverage maxillary splint with an acrylic flange that rests lingual to the lower anterior teeth, with buccal and incisal indices of the lower cusp tips. This splint brings the mandible into a protrusive position. The anterior repositioning splint is most effective at night because it keeps the mandible forward during sleep when it would otherwise tend to relax and retrude.

    Contact Us
    Contact Us
  • Bionatorbionator

    Bionator I

    The Bionator I is used for the correction of Class II malocclusions with a deep bite. It can serve to stimulate alveolar growth for patients with a deep overbite while gaining space and correcting an open bite in mixed dentition cases. The design incorporates fluted grooves in the posterior section along with an anterior bite plate to allow posterior eruption allowing lower facial height. We place an anterior cap for stability as the lower advances into position with the upper.



    Contact Us
    Contact Us
  • Bionator with Posterior Coveragebionator with posterior acrylic

    Bionator II

    The Bionator II is used to correct Class II malocclusions with an open bite. The appliance has an open anterior section to allow growth of the incisors while incorporating a posterior bite plate to prevent vertical eruption. Ideally, treatment starts should range from 8-11 years old, and recommended wear time is 21-23 hours a day.



    Contact Us
    Contact Us
  • Bloore AlignerBloore Aligner

    Bloore Aligner

    The Bloore Aligner provides a diverse flexibility to correct minor rotations, torque, and rotations. The eyelet springs can be bent side to side to adjust rotation or opened to allow labial movement. Once the treatment is complete, the eyelet springs are adapted to be made passive allowing the appliance to act as a retainer.

    Contact Us
    Contact Us
  • bluegrass appliancebluegrass fixed appliance

    Blue Grass Appliance

    This appliance is very effective for young patients who struggle with a tongue or thumb habit. It acts by disrupting the behavior or the thumb or tongue but provides an alternative to the behavior helping to break the habit. The bluegrass component itself is a Teflon roller and is recommended over beads or other smaller alternatives that can break and be swallowed.



    Contact Us
    Contact Us
  • bonded-rpe-facemask-hooksBonded RPE Expander

    Bonded RPE (Rapid Palatal Expander)

    Our Bonded RPE is made with the same Leone RPE, but any of our RPE’s can be used.  The appliance is built with a .036 framework around the lingual and buccal of the posterior teeth. We can add debonding arms which are laser welded from the frame into the vestibule creating a leverage point for removal. For Class III correction facemask hooks are laser welded and incorporated into the appliance. With each expansion appliance, we provide a custom swivel key that has an integrated activation recording tool directly on the handle.

    Contact Us
    Contact Us
  • bonded-rpe-facemask-hooksbonded RPE with facemask hooks

    Bonded RPE with Facemask Hooks

    Our Bonded RPE is made with the same Leone RPE, but any of our RPE’s can be used.  The appliance is built with a .036 framework around the lingual and buccal of the posterior teeth. We can add debonding arms which are laser welded from the frame into the vestibule creating a leverage point for removal. For Class III correction facemask hooks are laser welded and incorporated into the appliance. With each expansion appliance, we provide a custom swivel key that has an integrated activation recording tool directly on the handle.



    Contact Us
    Contact Us
  • clearbow applianceClearbow retainer

    Clear Bow Retainer

    The Clear Bow a new clear retainer that is fabricated with a virtually unbreakable, BPA-free plastic orthodontic wire (ClearBow). It is not damaged by boiling water or stained by coffee, cola, beet juice or red wine (bow only, not the acrylic retainer itself). The ClearBow is designed to provide superior aesthetics encouraging continuous wear for your patients.

    When metallic compounds interact with dental plaque over a long period, they can stain a small portion of the enamel. Because the thermoplastic strap of the ClearBow assembly does not contain any metallic compounds and is softer than stainless steel, it does not stain or scratch tooth enamel, restorations or veneered teeth.

    Contact Us
    Contact Us
  • compact-rpecompact rpe

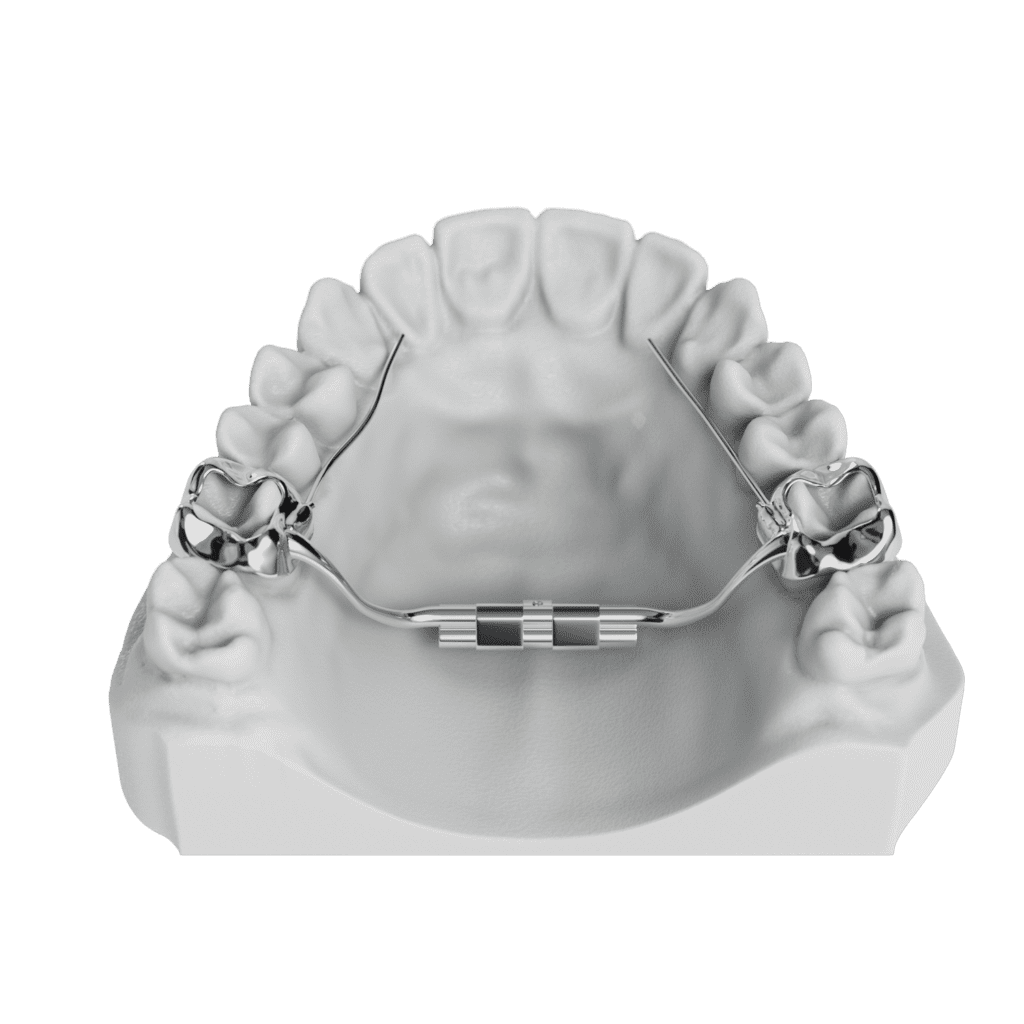

    Compact RPE (Rapid Palatal Expander)

    The Compact RPE is a low profile expander. With its compact body, it provides excellent stability and increased patient comfort. It activates the same way a standard expansion screw does with the provided blue swivel key. With each expansion appliance, we provide a custom swivel key that has an integrated activation recording tool directly on the handle.

    Contact Us
    Contact Us
  • dawson splint with cuspid risersDawson splint with cuspid risers

    Dawson Splint (Cuspid Risers)

    The centric relations diagnostic splint or Dawson Splint is a modification of the flat occlusal plane splint. This appliance has slight centric stops and an anterior ramp extending off the labial cuspid-to-cuspid region to provide incisal and cuspid guidance.  The centric relations diagnostic splint is a flat-plane, full-contact splint fabricated on either the maxillary or mandibular arch. The maxillary splint provides smooth anterior guidance that is just steep enough to allow immediate posterior disclusion.

    The mandibular splint allows for full contact of the maxillary arch on the occlusal surface of the mandibular splint. The anterior region is flattened from cuspid centric stop to cuspid centric stop, which allows for the immediate lift-off onto the cuspids and a smooth transition on the incisors during crossover excursions.

    Contact Us
    Contact Us
  • Distal JetDistal Jet

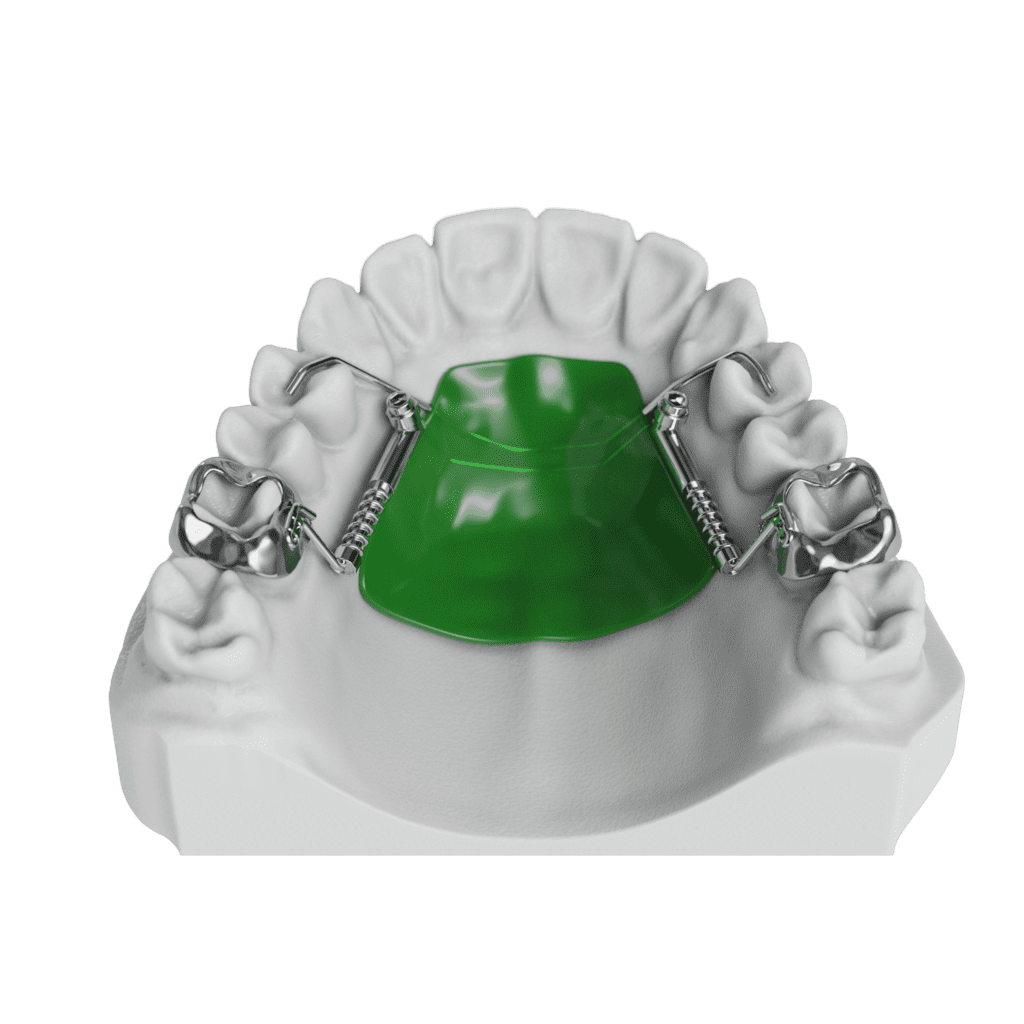

    Distal Jet

    The Distal Jet is constructed around a highly efficient piston, and tube principle, coupled with a controlled and defined force delivery. The Distal Jet is uniquely adapted to a bio-mechanic approach to maximize outcomes. Superior distalizer combines simple translation with excellent anchorage control and positive, simple molar retention with one appliance. Typical clinical situations for the Distal Jet are: Class II maxillary protrusion, Class II molar relations resulting from missing or blocked out teeth, and Class II subdivision (unilateral) cases. Expansion can also be achieved by adding a transverse screw.

    Contact Us
    Contact Us
  • e-arch lower expandere-arch lower expander

    E-Arch

    Taken from “The Mandibular E-Arch” by Neal Kravitz, the E-arch is a fixed, spring-loaded expander for slow expansion of the maxillary or mandibular arches. Developed by Arnold, and popularized by Berkowitz, the E-arch was invented for maxillary orthopedic expansion in patients with cleft palates. In the mandible, the E-arch can create a modest amount (4 to 5 mm) of arch space in the lower anterior region by orthodontic tipping (rather than orthopedic change) of the lower posterior teeth, as well as distalization of the first molars.

    The appliance consists of a 0.040-inch tube-like frame with a NiTi open coil spring. Seating the E-arch compresses the open coil spring and activates expansion. Therefore, the E-arch is ideal where patient compliance or parent cooperation is a concern. The E- arch is typically banded to the first permanent molars; however, if these teeth have not fully erupted, bands can be placed on the second deciduous molars. In these situations, the clinician may consider placing lingual extension arms to prevent the second deciduous molars from expanding further than the first permanent molars.

    Contact Us
    Contact Us
  • Fixed Fan Expander for CleftFixed Fan Expander for Cleft

    Fan RPE (Rapid Palatal Expander)

    The fan expander (fan RPE) allows for rapid expansion of the palate widening the arch of the anterior section while still maintaining the expansion at the molar level. This appliance self-
    deactivates when maximum expansion has been achieved preventing over-treatment. The Fan RPE is commonly used for patients with cleft palates and comes in 7 and 11 mm. With each expansion appliance, we provide a custom swivel key that has an integrated activation recording tool directly on the handle.

    Contact Us
    Contact Us
  • fixed-bite-platefixed-bite-plate

    Fixed Bite Plate

    The Fixed Bite Plate is used to treat deep bites allowing for the eruption of the posterior segments. This appliance is cemented into place and can be used in conjunction with fixed brackets. As with any fixed acrylic appliance, custom colors can be chosen.

    Contact Us
    Contact Us
